Object-Oriented Probabilistic Relational Model

In [1]:

import pyagrum.prm as gum
import pyagrum.lib.notebook as gnb

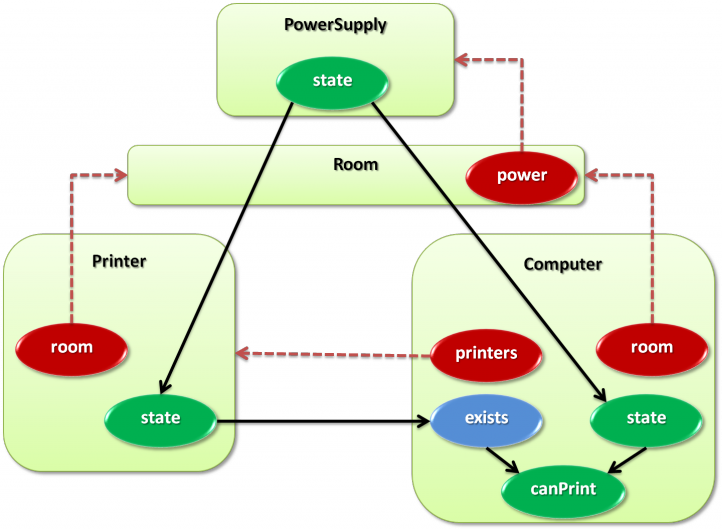

O3PRM is inspired by relational language, directly based on the BN and improved by object oriented paradigms, where the focus is set on classes of objects and by defining relations among these objects (see http://o3prm.gitlab.io/ for more details)

8e96adb5c1da4eda84553052d4dd7add

O3PRM syntax

In [2]:

with open("res/Asia.o3prm", "r") as prm:
  for line in prm.readlines():
    print(line, end="")

class Asia {

    boolean visitToAsia {
        [ 0.99,  // False
          0.01 ] // True
    };

    boolean tuberculosis dependson visitToAsia {
        // False | True
        [    0.99, 0.95,  // False
             0.01, 0.05 ] // True
    };

    boolean smoking {
        [ 0.50,  // False
          0.50 ] // True
    };

    boolean lungCancer dependson smoking {
        // False | True => smoking
        [    0.99, 0.90,  // False
             0.01, 0.10 ] // True
    };

    boolean bronchitis dependson smoking {
        // False | True => smoking
        [    0.70, 0.40,  // False
             0.30, 0.60 ] // True
    };

    boolean tubOrCancer dependson tuberculosis, lungCancer {
        //      False    ||     True      => tuberculosis
        //  False | True || False | True  => lungCancer
        [     1.00, 0.00,     0.00, 0.00,  // False
              0.00, 1.00,     1.00, 1.00 ] // True
    };

    boolean positiveXRay dependson tubOrCancer {
        // False | True => tubOrCancer
        [ 0.95, 0.02,  // False
          0.05, 0.98 ] // True
    };

    boolean dyspnea dependson tubOrCancer, bronchitis {
        //      False    ||     True      => tubOrCancer
        //  False | True || False | True  => bronchitis
        [     0.90, 0.20,     0.30, 0.10,  // False
              0.10, 0.80,     0.70, 0.90 ] // True
    };
}

Using o3prm syntax for creating BayesNet

In [3]:

bn = gum.loadBN("res/Asia.o3prm", verbose=False)
bn

Out[3]:

In [4]:

bn = gum.loadBN("res/aSys.o3prm")
bn

Out[4]:

In [5]:

classpath = "res/ComplexPrinters"
filename = "res/ComplexPrinters/fr/lip6/printers/system.o3prm"

system = "Work"
bn = gum.loadBN(filename, system=system, classpath=classpath)

In [6]:

# the inference will take place in a rather large junction tree
gnb.showJunctionTreeMap(bn, scaleClique=0.1, scaleSep=0.05, lenEdge=1.2, size="8!")

../_images/notebooks_25-Models_o3prm_10_0.svg

In [7]:

gum.saveBN(bn, "out/bnprinters.bgum")

In [8]:

bn2 = gum.loadBN("out/bnprinters.bgum")
gnb.showInference(bn2, size="25!")

../_images/notebooks_25-Models_o3prm_12_0.svg

In [9]:

import pyagrum.lib.image as gimg

gimg.export(bn, filename="out/ComplexPrinters.pdf")

In [10]:

bn = gum.loadBN("res/aSys.o3prm")
gnb.sideBySide(gnb.getBN(bn, size="5"), gnb.getInference(bn, size="5"))

Exploring Probabilistic Relational Model

In [11]:

classpath = "res/ComplexPrinters"
filename = "res/ComplexPrinters/complexprinters_system.o3prm"
explor = gum.PRMexplorer()
explor.load(filename)

In [12]:

for cl in explor.classes():
  print("Class : " + cl)
  print("  - Super class : " + ("None" if explor.getSuperClass(cl) == None else explor.getSuperClass(cl)))
  print("  - Implemented interface : ")
  for inter in explor.classImplements(cl):
    print("      " + inter)
  print("  - Direct sub-types : ")
  for ext in explor.getDirectSubClass(cl):
    print("      " + ext)
  print("  - Attributes : ")
  for t, n, depensons in explor.classAttributes(cl):
    s = ""
    for depenson in depensons:
      s = s + depenson + " "
    print("      " + t + " " + n + " (" + s + ")")
  print("  - References : ")
  for t, n, isArray in explor.classReferences(cl):
    print("      " + t + ("[]" if isArray else "") + " " + n)
  print("  - Aggragates : ")
  for t, n, g, l, slots in explor.classAggregates(cl):
    s = ""
    for slot in slots:
      s = s + slot + " "
    print("      " + t + " " + n + " " + g + " " + ("NoLabel" if l == None else l) + " (" + s + ")")
  print("  - SlotChains : ")
  for t, n, isMultiple in explor.classSlotChains(cl):
    print("      " + t + " " + n + " " + ("[]" if isMultiple else ""))
  print("  - Parameters : ")
  for param in explor.classParameters(cl):
    print("      " + param)
  # print("  - Dag : ")
  # (dic, dotString) = explor.classDag(cl)
  # print(dic)
  # print(dotString)

  print()

Class : ParamClass
  - Super class : None
  - Implemented interface :
  - Direct sub-types :
      ParamClass<lambda=0.001,t=4>
      ParamClass<lambda=0.4,t=4>
  - Attributes :
      t_ink hasInk ()
      t_degraded equipState (room.power.state hasInk hasPaper )
      t_paper hasPaper ()
  - References :
      Room room
  - Aggragates :
  - SlotChains :
      t_state room.power.state
  - Parameters :
      lambda
      t

Class : ParamClass<lambda=0.001,t=4>
  - Super class : ParamClass
  - Implemented interface :
  - Direct sub-types :
  - Attributes :
      t_degraded equipState (room.power.state hasInk hasPaper )
      t_paper hasPaper ()
      t_ink hasInk ()
  - References :
      Room room
  - Aggragates :
  - SlotChains :
      t_state room.power.state
  - Parameters :
      t
      lambda

Class : BWPrinter
  - Super class : None
  - Implemented interface :
      Printer
  - Direct sub-types :
  - Attributes :
      t_paper hasPaper ()
      t_degraded equipState (room.power.state hasPaper hasInk )
      t_ink hasInk ()
  - References :
      Room room
  - Aggragates :
  - SlotChains :
      t_state room.power.state
  - Parameters :

Class : Computer
  - Super class : None
  - Implemented interface :
      Equipment
  - Direct sub-types :
  - Attributes :
      t_degraded equipState (room.power.state )
      boolean can_print (equipState working_printer )
  - References :
      Printer[] printers
      Room room
  - Aggragates :
      mycount count_printers count true (degraded_printer functional_printer )
      boolean working_printer exists true (degraded_printer functional_printer )
      boolean functional_printer exists OK (printers.equipState )
      boolean degraded_printer exists Degraded (printers.equipState )
  - SlotChains :
      t_degraded printers.equipState []
      t_state room.power.state
  - Parameters :

Class : PowerSupply
  - Super class : None
  - Implemented interface :
  - Direct sub-types :
  - Attributes :
      t_state state ()
  - References :
  - Aggragates :
  - SlotChains :
  - Parameters :

Class : SafeComputer
  - Super class : None
  - Implemented interface :
      Equipment
  - Direct sub-types :
  - Attributes :
      t_degraded equipState (room.power.(t_state)state )
      boolean can_print (working_printer equipState )
  - References :
      Printer[] printers
      Room room
  - Aggragates :
      boolean functional_printer exists OK (printers.(t_state)equipState )
      boolean degraded_printer exists Degraded (printers.(t_degraded)equipState )
      boolean working_printer exists true (functional_printer degraded_printer )
  - SlotChains :
      t_degraded printers.(t_degraded)equipState []
      t_state printers.(t_state)equipState []
      t_state room.power.(t_state)state
  - Parameters :

Class : ParamClass<lambda=0.4,t=4>
  - Super class : ParamClass
  - Implemented interface :
  - Direct sub-types :
  - Attributes :
      t_ink hasInk ()
      t_degraded equipState (room.power.state hasInk hasPaper )
      t_paper hasPaper ()
  - References :
      Room room
  - Aggragates :
  - SlotChains :
      t_state room.power.state
  - Parameters :
      lambda
      t

Class : Room
  - Super class : None
  - Implemented interface :
  - Direct sub-types :
  - Attributes :
  - References :
      PowerSupply power
  - Aggragates :
  - SlotChains :
  - Parameters :

Class : ColorPrinter
  - Super class : None
  - Implemented interface :
      Printer
  - Direct sub-types :
  - Attributes :
      t_degraded equipState (room.power.state hasPaper hasInk black )
      t_ink black ()
      t_paper hasPaper ()
      t_ink magenta ()
      t_ink cyan ()
      t_ink yellow ()
  - References :
      Room room
  - Aggragates :
      boolean hasInk forall NotEmpty (yellow cyan black magenta )
  - SlotChains :
      t_state room.power.state
  - Parameters :

In [13]:

print("The following lists the systems of the prm:\n")
systems = explor.getalltheSystems()
sys1 = systems[0]
print("Name of the system: " + sys1[0] + "\n")
print("Nodes : dict(id: [name,type])")
print(sys1[1])
print("\n")
print("Arcs : list[(tail, head),(tail, head)...]")
print(sys1[2])

The following lists the systems of the prm:

Name of the system: aSys

Nodes : dict(id: [name,type])
{0: ('pow', 'PowerSupply'), 1: ('r', 'Room'), 2: ('bw_printers[0]', 'BWPrinter'), 3: ('bw_printers[1]', 'BWPrinter'), 4: ('bw_printers[2]', 'BWPrinter'), 5: ('bw_printers[3]', 'BWPrinter'), 6: ('bw_printers[4]', 'BWPrinter'), 7: ('bw_printers[5]', 'BWPrinter'), 8: ('bw_printers[6]', 'BWPrinter'), 9: ('bw_printers[7]', 'BWPrinter'), 10: ('bw_printers[8]', 'BWPrinter'), 11: ('bw_printers[9]', 'BWPrinter'), 12: ('color_printers[0]', 'ColorPrinter'), 13: ('color_printers[1]', 'ColorPrinter'), 14: ('c1', 'Computer'), 15: ('c2', 'Computer'), 16: ('p', 'ParamClass<lambda=0.4,t=4>'), 17: ('paramBis', 'ParamClass<lambda=0.001,t=4>')}


Arcs : list[(tail, head),(tail, head)...]
[]

In [14]:

gnb.showTensor(explor.cpf("Computer", "equipState"))

	t_degraded-0x79f32a3340
room.power.state	OK	Dysfunctional	Degraded
OK	0.9000	0.0900	0.0100
NOK	0.0000	1.0000	0.0000

In [15]:

for cl in explor.types():
  print("Type : " + cl)
  print("  - Super type : " + ("None" if explor.getSuperType(cl) == None else explor.getSuperType(cl)))
  print("  - Direct sub-types : ")
  for name in explor.getDirectSubTypes(cl):
    print("      " + name)
  print("  - Labels : ")
  for t in explor.getLabels(cl):
    print("      " + t)
  print("  - Labels mapping : ")
  for key, val in dict().items() if explor.getLabelMap(cl) == None else explor.getLabelMap(cl).items():
    print("      " + key + " -> " + val)
  print()

Type : t_paper
  - Super type : t_state-0x79f4341840
  - Direct sub-types :
  - Labels :
      Ready
      Jammed
      Empty
  - Labels mapping :
      Ready -> OK
      Jammed -> NOK
      Empty -> NOK

Type : t_degraded
  - Super type : t_state-0x79f4341840
  - Direct sub-types :
  - Labels :
      OK
      Dysfunctional
      Degraded
  - Labels mapping :
      OK -> OK
      Dysfunctional -> NOK
      Degraded -> NOK

Type : boolean
  - Super type : None
  - Direct sub-types :
      t_state
  - Labels :
      false
      true
  - Labels mapping :

Type : t_state
  - Super type : boolean-0x79f2c04d80
  - Direct sub-types :
      t_paper
      t_degraded
      t_ink
  - Labels :
      OK
      NOK
  - Labels mapping :
      OK -> true
      NOK -> false

Type : t_ink
  - Super type : t_state-0x79f4341840
  - Direct sub-types :
  - Labels :
      NotEmpty
      Empty
  - Labels mapping :
      NotEmpty -> OK
      Empty -> NOK

Type : mycount
  - Super type : None
  - Direct sub-types :
  - Labels :
      0
      1
      2
      3
      4
      5
  - Labels mapping :

In [16]:

for cl in explor.interfaces():
  print("Interface : " + cl)
  print("  - Super interface : " + ("None" if explor.getSuperInterface(cl) == None else explor.getSuperInterface(cl)))
  print("  - Direct sub-interfaces : ")
  for name in explor.getDirectSubInterfaces(cl):
    print("      " + name)
  print("  - Implementations : ")
  for impl in explor.getImplementations(cl):
    print("      " + impl)
  print("  - Attributes : ")
  for t, n in explor.interAttributes(cl, allAttributes=True):
    print("      " + t + " " + n)
  print("  - References : ")
  for t, n, isArray in explor.interReferences(cl):
    print("      " + t + ("[]" if isArray else "") + " " + n)
  print()

Interface : Equipment
  - Super interface : None
  - Direct sub-interfaces :
      Printer
  - Implementations :
      Computer
      SafeComputer
  - Attributes :
      boolean equipState
      t_state equipState
      t_degraded equipState
  - References :
      Room room

Interface : Printer
  - Super interface : Equipment
  - Direct sub-interfaces :
  - Implementations :
      BWPrinter
      ColorPrinter
  - Attributes :
      t_degraded equipState
      boolean equipState
      t_state equipState
      boolean hasInk
      boolean hasPaper
  - References :
      Room room

In [17]:

print(explor.isType("fr.lip6.printers.base.Printer"))
print(explor.isClass("fr.lip6.printers.base.Printer"))
print(explor.isInterface("fr.lip6.printers.base.Printer"))

False
False
False
