pyAgrum’s modular architecture

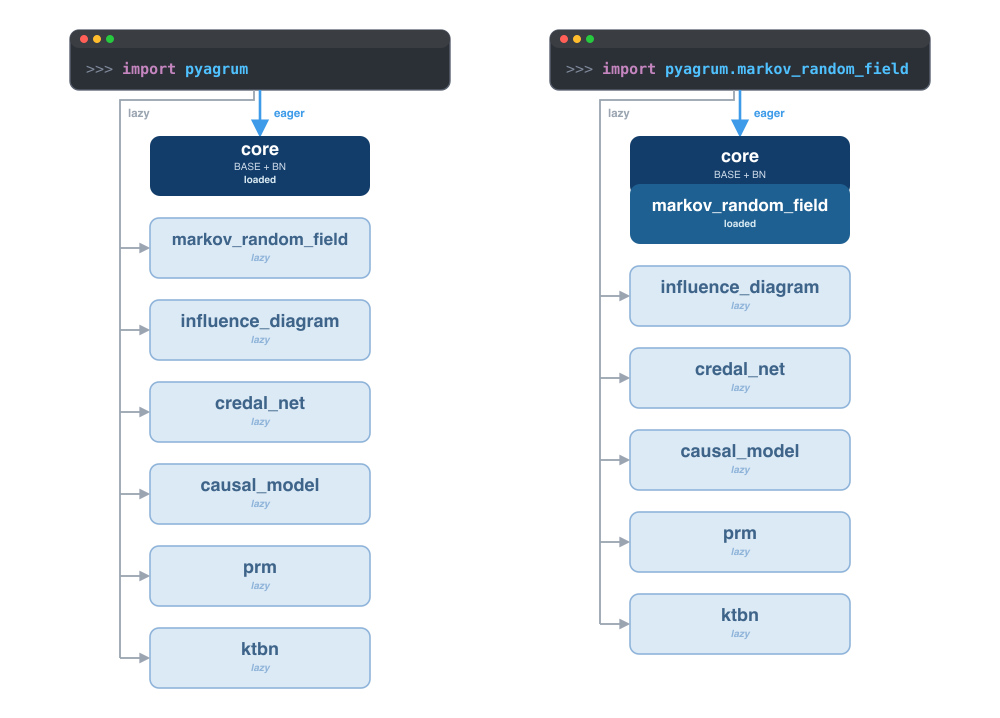

import pyagrum loads the core eagerly and only registers its six submodules (lazy); import pyagrum.markov_random_field (or any other submodule) loads the core and that submodule eagerly, the others staying lazy.

Note

This page is only about the compiled part of pyAgrum: the C++/aGrUM code exported through SWIG. pyagrum is not a single compiled extension: it is a lightweight core (Bayesian networks and every fundamental component – graphs, variables, tensors…) plus six optional submodules, each compiled as its own independent extension – one per probabilistic graphical model family beyond BN, plus pyagrum.ktbn (k-order dynamic Bayesian networks). All six are reachable lazily (see below).

pyAgrum also ships several pure-Python modules – pyagrum.lib (notebook display, image export, …), pyagrum.causal, pyagrum.ctbn, pyagrum.clg, pyagrum.bnmixture, pyagrum.skbn, pyagrum.explain… These are ordinary Python packages layered on top of the compiled core: plain import statements, no lazy-loading shim, nothing described on this page applies to them.

Package	Content	Main classes	Reachable lazily?
pyagrum	core: graphs, variables, Tensor, Bayesian networks, BN inference and learning	BayesNet, LazyPropagation, BNLearner…	always loaded
pyagrum.markov_random_field	Markov random fields	MarkovRandomField, ShaferShenoyMRFInference	yes
pyagrum.influence_diagram	Influence diagrams and LIMIDs	InfluenceDiagram, ShaferShenoyLIMIDInference, IDGenerator	yes
pyagrum.credal_net	Credal networks	CredalNet, CNLoopyPropagation, CNMonteCarloSampling	yes
pyagrum.causal_model	Causal models (causal inference, counterfactuals)	CausalModel, CausalImpact, Counterfactual	yes
pyagrum.prm	Probabilistic relational models (o3prm)	PRMexplorer	partially (see below)
pyagrum.ktbn	k-order dynamic Bayesian networks	KTBN, KTBNInference, KTBNLearner	yes

Splitting the C++/SWIG extension this way keeps a plain import pyagrum fast and light: a script that only ever builds and queries Bayesian networks never pays the cost of loading the credal-network or causal-inference machinery.

Two ways to use a submodule

1. Just use it – lazy loading. Every class and function above is directly reachable from the pyagrum namespace, without importing the submodule explicitly:

import pyagrum as gum

mrf = gum.MarkovRandomField()  # transparently imports pyagrum.markov_random_field on first use
ie = gum.ShaferShenoyMRFInference(mrf)

The first access to a name owned by a submodule (MarkovRandomField, InfluenceDiagram, CredalNet, CausalModel, KTBN…) imports that submodule behind the scenes and caches the result – every later access is a plain attribute lookup, no import overhead. If the submodule was excluded from the build (see Optional submodules below), the same call raises an AttributeError instead of silently doing nothing.

2. Scope the import explicitly. Each submodule can also be imported on its own, as a drop-in superset of the core namespace:

import pyagrum.markov_random_field as gum

bn = gum.BayesNet()               # still available: the core is re-exported
mrf = gum.MarkovRandomField()      # no lazy-loading step needed, already imported

This is exactly the pattern used throughout pyAgrum’s own test suite for single-model scripts: it documents at the top of the file which model family is in use, and avoids the (negligible but nonzero) first-access import cost.

The lazy-loading mechanism

The trick is a module-level __getattr__ on pyagrum itself (PEP 562): accessing an attribute that is not already defined in the core namespace triggers a lookup in a small table mapping names to the submodule that owns them, imports that submodule with importlib, and re-binds the name directly into pyagrum’s namespace so every subsequent access skips the indirection entirely. This is the same mechanism used by other lazily-loaded packages: the submodule is only ever imported if the program actually uses it.

A handful of convenience type aliases – DirectedModel, PGM, MRFInference, CNInference, IDInference – span several submodules at once (e.g. PGM covers BN, MRF, ID and CN). Accessing one of these imports every submodule it spans, not just one; they are rarely needed in everyday code and mostly useful for type annotations.

Optional submodules

Each submodule can be excluded from a given pyAgrum build (see the PYAGRUM_WITH_MRF / _ID / _CN / _CM / _PRM / _KTBN build options) – for instance a minimal deployment that only ever needs Bayesian networks. When a submodule was left out, accessing any of its names raises a plain AttributeError rather than an import error deep in unrelated code, and import pyagrum.markov_random_field (etc.) fails with the usual ModuleNotFoundError.

The pyagrum.prm special case

pyagrum.prm behaves slightly differently from the five fully-lazy submodules above. Its PRMexplorer class is reachable lazily like everything else, but O3PRM file support on BayesNet – BayesNet.loadO3PRM/saveO3PRM, and the "O3PRM" extension of loadBN()/saveBN() – is not: these methods only exist once pyagrum.prm has actually been imported, because pyagrum.prm attaches them onto the core BayesNet class itself on import rather than exposing them as free-standing names. Calling gum.loadBN("model.o3prm") without ever having imported pyagrum.prm raises an explicit error asking for import pyagrum.prm:

import pyagrum as gum

gum.loadBN("model.o3prm")
# InvalidArgument: loading a .o3prm file requires 'import pyagrum.prm' first

import pyagrum.prm  # registers BayesNet.loadO3PRM/saveO3PRM
gum.loadBN("model.o3prm")  # now works
